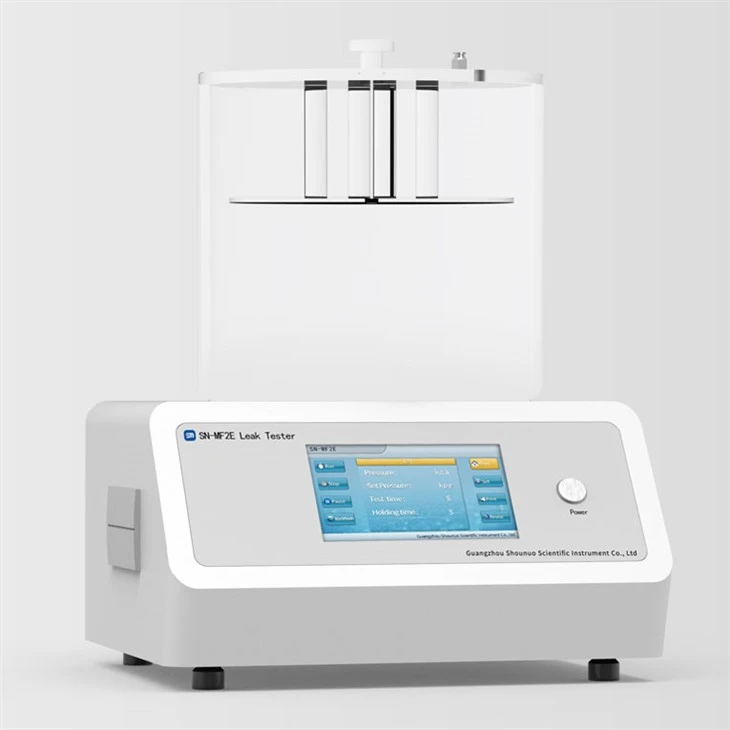

SN-MF2E Leak Tester
Leak Detection Equipment is suitable for the sealing leakage tests of flexible packaging, such as plastic bags/ bottle/ cans/ boxes for food, drugs, medical instruments, daily-use chemical products, cars, electronic components, stationery and other industrial products. This designed instrument also can be used to test seal performance of specimens after falling and compression tests.
Standards
GB/T 15171, ASTM D3078
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing
Intended Use
Suitable for seal testing of packaging bags, bottles, tubes, cans, and boxes in food, pharmaceutical, medical device, daily chemical, automotive, electronic components, and stationery industries. It is also applicable for seal performance testing of specimens after drop and compression tests.
Operating Principle
By evacuating the vacuum chamber to create a pressure difference between the inside and outside of the specimen immersed in water, the seal performance is determined by observing any gas leakage from the specimen.
Product Features
- Utilizes the negative pressure (vacuum) test principle.
- Equipped with imported components to ensure stable and reliable performance.
- Features an industrial-grade touchscreen with one-click automatic operation.
Technical Parameters
|
Item |
Parameter |
|
Measuring Range |
-85 kPa to 0 |
|
Measurement Accuracy |
±0.1 kPa |
|
Holding Time |
0.1 s–99.9 h |
|
Barrel Size |
Ø300 mm × 325 mm |
Standard Configuration
Main Unit, Power Cord, Sealing Bucket
User-provided Items
Compressed Air (>0.8 MPa)
