COF Tester
Our goal is to become your true partner in the field of COF Tester in China. Guangzhou Shounuo Scientific Instrument Co., LTD. founded in 2011, is a high-tech enterprise integrating research and development, production, sales and service of flexible packaging testing instruments. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Product application
Our products include electronic tensile testing machine, water vapor transmission rate tester, OTR tester, gas transmission rate tester, etc. These products are widely used in drug testing, quality inspection, colleges and universities, pharmaceutical packaging and other fields.
Production market
We use high-quality products and services to open up the international market. For many years, we have continued to provide high-quality products to overseas customers in dozens of countries and regions such as Europe, the United States, and Southeast Asia, and have been widely recognized by domestic and foreign customers.
Our services
In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Advantages of Coefficient Of Friction Tester
Versatile setup
Many machines can accommodate various materials, from metals and plastics to textiles and rubber.
Automated testing
Streamlined processes allow for repetitive testing with minimal human intervention, improving efficiency.
Improved safety
By understanding friction properties, manufacturers can engineer products that minimize risks associated with slippage and instability.
Enhanced product development
Data derived from these tests can guide the design phase, helping engineers to choose the most suitable materials for specific applications.
Quality assurance
Regular testing creates a consistent standard, fostering trust and reliability in a company's products and services.
Coefficient Of Friction Tester Specification
|
Product Name |
Coefficient of Friction Tester |
|
Force measuring range |
0-2N(customizable) |
|
Accuracy |
0.5 level |
|
Sample thickness |
≤ 2 mm(can be customized) |
|
Coefficient measurement range |
0.001～0.999 |
|
Slider size |
63 mm*63 mm |
|
Test speed |
100 mm/min (150 mm/min optional) |
|
Slider mass |
200g (customizable) |
|
Work surface size |
200 mm*470 mm |
|
Measurement tolerance |
±2% |
|
Power supply |
AC 220V/50 Hz |
Types of Coefficient Of Friction Tester
Dynamic friction testing machines
These machines measure the friction that occurs when two materials slide past each other under a load.
Static friction testing machines
These devices determine the maximum frictional force before movement occurs between stationary surfaces.
Inclined plane friction testers
Utilizing an inclined plane, this type measures the angle at which a material begins to slide, calculating the coefficient of friction based on this angle.
Universal testing machines
Often equipped with additional features, these machines can perform a range of tests including the coefficient of friction alongside tensile, compression, and bending tests.

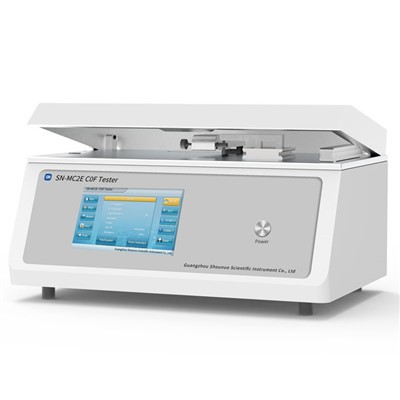

Features of Coefficient Of Friction Tester
Friction Coefficient Analyzer have high precision and accurate results, the unit features built-in curve display for real-time data visualization. 7(inch) touchscreen display,more accurate test results. Both the test surface and sliding block undergo demagnetization and residual magnetic detection, effectively reducing system testing errors.
Allows recording and analysis of data at specific points during the test. Password is required for correction to prevent incorrect modification.
Engineering and design
Used to design brakes, tires, and conveyor belts, where cof data ensures efficient and safe mechanical performance.
Automotive and aerospace
Critical for designing tires, brakes, and landing gear, as well as reducing risks of skidding and sliding during operation.
Material science
Cof testing is very important for the assessment and improvement of specific material attributes, such as the following:
Wear resistance
Evaluates the wear out of a material regarding friction between surfaces.
Lubrication efficiency
Assists in improving lubrication systems and mechanisms to achieve better performance.
Adhesion
Facilitates materials design with the required interaction properties applicable to industries or medicine.
Packing and Shipping of Coefficient Of Friction Tester
|
Packing |
Wooden box |
|
Shipping |
Shipped by road, sea, rail |
