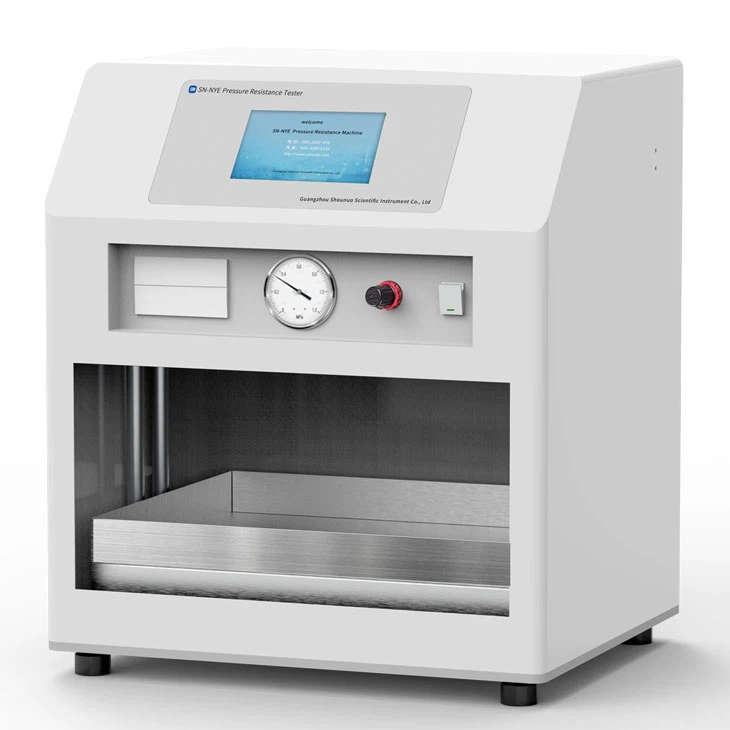

SN-NYE Pressure Resistance Tester

It is used to measure the pressure resistance of packaging bags. The pressure is pneumatically controlled, and the pressure can be adjusted freely within a certain range.The pressure can be adjusted arbitrarily within the test range to meet the different needs of customers.

Send Inquiry

Product Introduction

Standards

ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, JIS Z0212, GB/T 16491, GB/T 4857.4, QB/T 1048-2004

Application Fields

Intended Use

Specifically designed to determine the compression resistance (pressure endurance) of packaging bags. It features pneumatic pressure control, allowing the applied force to be adjusted freely within the specified range.

Operating Principle

The instrument evaluates the compression strength of the specimen by applying or releasing pressure through a high-precision pneumatic cylinder.

Product Features

High Precision: Utilizes imported sensors to ensure accurate and reliable test results.
Adjustable Pressure: The pressure can be precisely adjusted across the entire testing range to meet diverse customer requirements.
Ergonomic Design: Features a compact desktop structure designed for seated operation, ensuring ease and comfort for the operator.
Data Printing: Equipped with a micro-printer for the immediate generation of hard-copy test data.

Technical Parameters

Item	Parameter
Measuring Range	25–250 kg (250–2500 N)
Resolution	1 kg (10 N)
Test Travel	150 mm
Platen Size	400 mm × 500 mm

Standard Configuration

Main Unit, Power Cord

User-provided Items

Compressed Air (>0.8 MPa)
