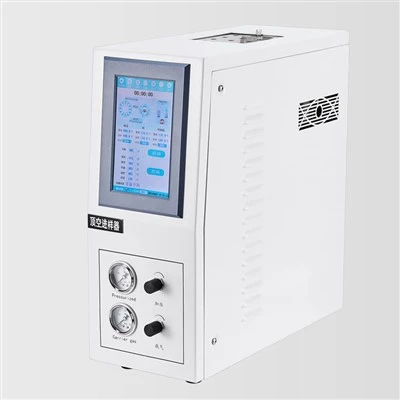

High-Throughput Headspace Sampler
Designed for space-constrained labs, the residual solvent analysis system offers rapid cycle times (<8 min/sample) and energy-saving standby modes. Key features include pre-pierced septum detection, leak-proof needle seals, and automated method optimization via AI-driven algorithms. It pairs seamlessly with all major GC brands.
Company Introduction
Since its establishment in 2011, Guangzhou Shuonuo Scientific Instrument Co., Ltd (SN) has grown from a visionary startup into a trailblazing force in packaging testing technology. Driven by a mission to redefine industry standards, SN quickly distinguished itself through cutting-edge R&D and a relentless focus on precision.
2016: National Recognition
Within just five years, SN's pioneering contributions to instrumentation earned it China's esteemed "Little Giant Enterprise" designation-a testament to its leadership in niche markets and advanced manufacturing capabilities.
2017: Breakthrough Technology
SN achieved a historic milestone by introducing the world's first gas chromatograph optimized for flexible plastic packaging. This innovation transformed quality assurance workflows, empowering industries to analyze film materials with unmatched accuracy.
2018: Global Ambitions Realized
Capitalizing on its technological edge, SN embarked on a strategic international expansion. Its reputation for reliability and customer-centric solutions rapidly garnered trust across global markets, bridging gaps between regional demands and cutting-edge testing tools.
2020: Strengthening Domestic Reach
To enhance service agility, SN launched its Hangzhou branch, reinforcing support for clients in East China and streamlining nationwide access to its advanced testing solutions.
Future Vision
Guided by the principles of "Innovation, Collaboration, and Excellence," SN continues to push boundaries. By integrating sustainable practices, expanding its global network, and fostering partnerships, the company is poised to shape the future of packaging testing while delivering value to industries and communities worldwide.
Product Parameter (Specification)
High-Throughput Headspace Sampler
|
Item |
Technical Parameters |
|
Equalization time |
0-100 min |
|
Pressurization time |
0-10min |
|
Sampling time |
0-10min |
|
Quantitative ring equilibration time |
0-10min |
|
Injection time |
0-10min |
|
Analysis time |
0-100min |
|
Blowdown time |
0-100min |
|
Volume of quantitative tube |
1ml(customise to 3ml) |
|
Headspace bottles specification |
10ml or 20ml |
|
Sample positions |
20 positions |
|
Circulation of heated samples |
20 positions |
|
Net weight |
About 20kg |
|
Power consumption |
Peak at 1000W |
|
Dimensions |
430mm*270mm*500mm |
|
Sample heating range |
40℃-200℃, temperature control accuracy 1℃ ( configured up to 250℃ customized ) |
|
Injection valve heating range |
40℃-200℃, temperature control accuracy 1℃ ( configured up to 330℃ customized ) |
|
Sample transfer tube heating |
40℃-200℃, temperature control accuracy 1℃ ( configured up to 330℃ customized ) |
|
RSD |
1.5% (100ppm aqueous ethanol solution) |
Product Feature And Application
Headspace Sampler Applications:
Identifies volatile compounds in blood, urine, and tissue samples for alcohol/drug testing, supporting ISO 17025-accredited forensic labs and DUI investigations.
Production Details
①The instrument features a space-saving, integrated structure with microcomputer control and a full Chinese LCD display for simple, user-friendly operation.
②Equipped with a universal interface to automatically synchronize with the chromatograph and workstation.
Deliver,Shipping And Serving
Pre-Sales Consultation
Access expert advice on product capabilities, industry-specific applications, and solution design. Benefit from complimentary sample testing and site evaluations to inform your decision.
Transactional Support
We facilitate transparent pricing discussions, contractual clarity, and timely deliveries. Pre-shipment functional checks and operator training ensure readiness upon arrival.
Lifelong After-Sales Partnership
Enjoy a 1-year full-coverage warranty, unlimited remote diagnostics, proactive maintenance alerts, and priority access to technical specialists for swift problem-solving.
